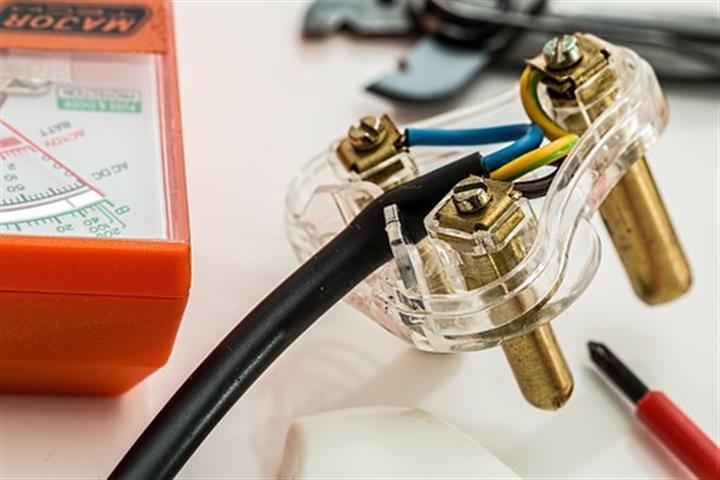

DIY tip: Learn how to wire a plug – step by step

If you connect your wiring to the wrong pins and you put your plug into the wall socket then things can go horribly wrong, so please be very careful.

According to the Eskom website, follow these steps if you need to wire a plug:

  1. Bare the ends of the three wires inside the electrical cord for about half a centimeter, by cutting away the plastic insulation.

  2. Gently twist the strands of copper wire with your fingers until each strand is tight.

  3. Fold over the twisted strands.

  4. Remove the plug cover by either “snapping” or unscrewing it.

  5. Unscrew the little screws on each of the plug’s pins.

  6. Insert the twisted copper wires into the holes in the pins.

  7. The green and yellow wire must always be inserted into the top pin.

  8. The blue wire is inserted into the left pin (the pin is marked with a blue spot or the letter N).

  9. The brown wire is inserted into the right pin (the pin is marked with a brown spot or the letter L)

  10. Tighten the little screw on each of the plug’s pins.

  11. Make sure the electrical cord is firmly gripped by the arrestor clips.

  12. Replace the cover of the plug.
